Features:
Customer-specific solutions
Flexible programming
Further interfaces available
Measures linear movements
Position value – Adjustment
Profile housing
Simple integration
Wear-free detection

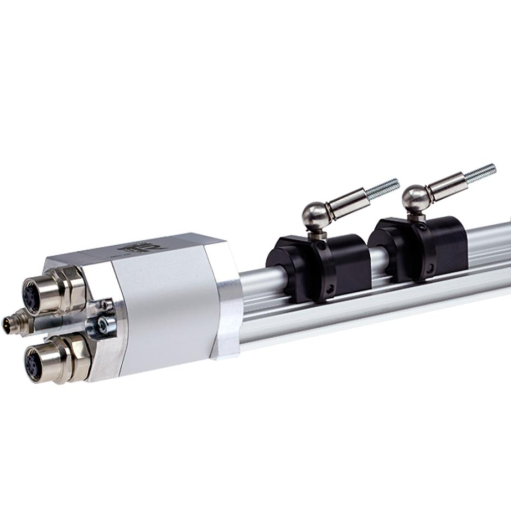

TR-Electronic LMPI46 – ETC Linear Encoder
Linear-Transducer LMPI46 – ETC
(L) Linear, (P) Profile, EtherCAT
Description
Additional information
| Marka |
|---|
About TR-Electronic
TR-Electronic, otomasyon teknolojisi için ölçüm ve kontrol sistemleri üretir ve geliştirir. TR-Electronic, farklı uygulama türleri için yüksek kaliteli standart ürünler veya özelleştirilmiş çözümler olarak doğru döner kodlayıcıları, doğrusal kodlayıcıları ve sürücüleri tedarik eder. TR-Electronic'teki uzmanlar, fikirleri ve geliştirme bilgileri, yaratıcı ürünlerin ve genişleyen küresel başarının temelidir. TR-Electronic ürün yelpazesi, işlevsellik, kalite ve maliyet etkinliği açısından rekabet avantajına sahiptir.
FİYAT AL
Teklif almak için lütfen başvurunuzu info@project-master.tr adresine göndererek, ihtiyaç duyduğunuz pozisyonları ve şirket detaylarını belirtin.
Specification
General Data
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 300 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm, 3 magnets 0.05 mm, 30 magnets Linearity deviation typically ± 15 µm ± 0.03 mm < 1000 mm ± 0.1 mm >= 1000…1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis typically < 6 µm < 0.015 mm < 1000 mm < 0.1 mm >= 1000…1500 mm < 0.15 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet Slider other on request EtherCAT - Interface - EtherCAT IEC 61158-1–6, IEC 61784-2 - Physical Layer Fast Ethernet, ISO/IEC 8802-3 - Device profile CoE, CiA DS-406 Transmission rate - Specific value 100 MBit/s Cycle time 100…20000 µs Parameter/Function, changeable Resolution Observer Interpolation Preset parameter Counting direction Type of parametrization programmable Programming - Tool Fieldbus-Device TR-Soft: TRWinProg Cycle time internal, <= 0.50 m 0.50 ms Cycle time internal, <= 1.00 m 1.00 ms Cycle time internal, <= 2.00 m 1.50 ms Optional Magnets - Number of magnets 3, 30 - Magnet - Minimum distance 80 mm
