Features:
Customer-specific solutions
Flexible programming
Further interfaces available
Measures linear movements
Profile housing
Simple integration
Wear-free detection

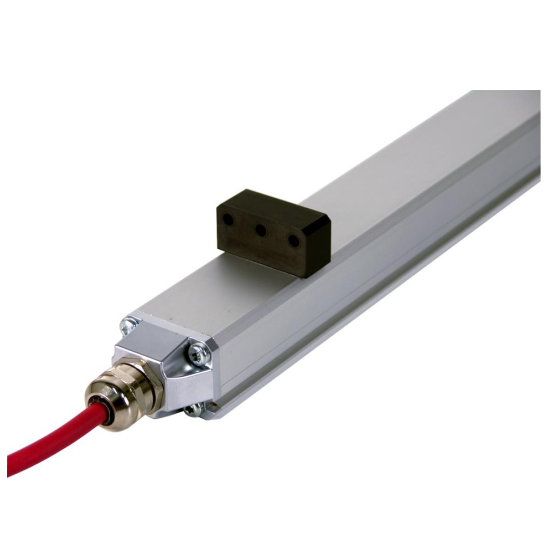

TR-Electronic LMP30 – ISI Linear Encoder
Linear-Transducer LMP30 – ISI
(L) Linear, (P) Profile, ISI
Description
Additional information
| Marka |
|---|
About TR-Electronic
TR-Electronic, otomasyon teknolojisi için ölçüm ve kontrol sistemleri üretir ve geliştirir. TR-Electronic, farklı uygulama türleri için yüksek kaliteli standart ürünler veya özelleştirilmiş çözümler olarak doğru döner kodlayıcıları, doğrusal kodlayıcıları ve sürücüleri tedarik eder. TR-Electronic'teki uzmanlar, fikirleri ve geliştirme bilgileri, yaratıcı ürünlerin ve genişleyen küresel başarının temelidir. TR-Electronic ürün yelpazesi, işlevsellik, kalite ve maliyet etkinliği açısından rekabet avantajına sahiptir.
FİYAT AL
Teklif almak için lütfen başvurunuzu info@project-master.tr adresine göndererek, ihtiyaç duyduğunuz pozisyonları ve şirket detaylarını belirtin.
Specification
General Data
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.01 mm Linearity deviation ± 0.15 mm <= 1500 mm ± 0.20 mm > 1500 mm Reproducibility 0.01 mm Hysteresis 0.1 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity 1 m/s, Resolution = 0.01 mm Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet T1-S3818 other on request Incremental - Interface - Load frequency 4…120 kHz - Incremental signals K1± K2± - Output driver, TTL RS-422, 5 VDC - Output driver, HTL Push-Pull, 11…27 VDC Parameter/Function, changeable Load frequency Preset parameter Type of parametrization programmable Programming - Tool TR-Soft: TRWinProg Cycle time internal, <= 1.25 m 1.00 ms Cycle time internal, <= 2.00 m 1.50 ms Cycle time internal, <= 3.00 m 2.00 ms Cycle time internal, > 3.00 m 2.50 ms External inputs - Preset electronic adjustment - Load input Load absolute position - Logic level "0“ < +2V, "1“ = Supply External outputs - Load output ISI Load process finished
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.01 mm Linearity deviation ± 0.15 mm <= 1500 mm ± 0.20 mm > 1500 mm Reproducibility 0.01 mm Hysteresis 0.1 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity 1 m/s, Resolution = 0.01 mm Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet T1-S3818 other on request Incremental - Interface - Load frequency 4…120 kHz - Incremental signals K1± K2± - Output driver, TTL RS-422, 5 VDC - Output driver, HTL Push-Pull, 11…27 VDC Parameter/Function, changeable Load frequency Preset parameter Type of parametrization programmable Programming - Tool TR-Soft: TRWinProg Cycle time internal, <= 1.25 m 1.00 ms Cycle time internal, <= 2.00 m 1.50 ms Cycle time internal, <= 3.00 m 2.00 ms Cycle time internal, > 3.00 m 2.50 ms External inputs - Preset electronic adjustment - Load input Load absolute position - Logic level "0“ < +2V, "1“ = Supply External outputs - Load output ISI Load process finished
