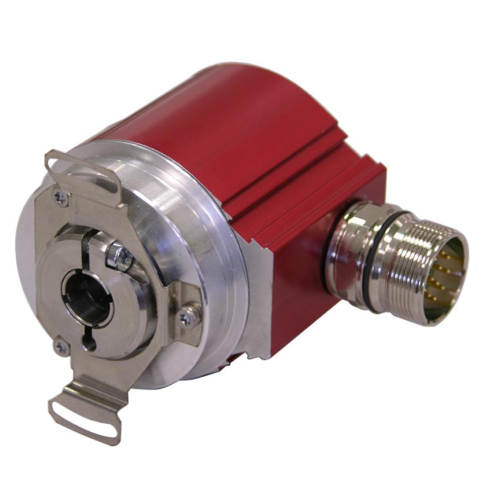

TR-Electronic COS58 – SSI Absolute Encoder
Absolute-Encoder COS58 – SSI
(C) Compact Encoder, (S) Blind shaft, SSI
Description
Additional information
| Marka |
|---|
About TR-Electronic
TR-Electronic, otomasyon teknolojisi için ölçüm ve kontrol sistemleri üretir ve geliştirir. TR-Electronic, farklı uygulama türleri için yüksek kaliteli standart ürünler veya özelleştirilmiş çözümler olarak doğru döner kodlayıcıları, doğrusal kodlayıcıları ve sürücüleri tedarik eder. TR-Electronic'teki uzmanlar, fikirleri ve geliştirme bilgileri, yaratıcı ürünlerin ve genişleyen küresel başarının temelidir. TR-Electronic ürün yelpazesi, işlevsellik, kalite ve maliyet etkinliği açısından rekabet avantajına sahiptir.
FİYAT AL
Teklif almak için lütfen başvurunuzu info@project-master.tr adresine göndererek, ihtiyaç duyduğunuz pozisyonları ve şirket detaylarını belirtin.
Specification
General data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 11/27 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Supply - In case of UL / CSA approval according to NEC Class 2 Device design - Type Single-/Multi-Turn Total resolution <= 36 Bit Number of steps per revolution <= 262144 Number of revolutions <= 256000 SSI - Interface - SSI-Clock input Optocoupler - SSI-Data output RS-422, 2-wire - SSI-Clock frequency 80…1000 kHz - SSI-Mono time, typically 15 µs, 20 µs, 50 µs, 500 µs Incremental - Interface - Equipment Optional interface - Incremental signals, square K1± K2± - Impulses, square wave 1024 or 2048 - Output driver, TTL RS-422, 5 VDC Cycle time 250 µs, internal Parameter/Function, changeable Resolution Output code Output format Mono time Preset parameter Parity Toggle bit Counting direction Type of parametrization programmable Programming - Tool TR-Soft: TRWinProg External inputs - F/R Count direction - Preset electronic adjustment - Logic level "0“ < +2V, "1“ = Supply Maximum Speed, mechanically <= 12000 1/min Shaft load, axial/radial Own mass Bearing life time >= 3.9E+10 revolutions Bearing life time - Parameter - Speed 6000 1/min - Operating temperature 60 °C Shaft type - Shaft diameter [mm] 8 - Shaft diameter [mm] 10 - Shaft diameter [mm] 11 - Shaft diameter [mm] 12 Angular acceleration <= 10E+4 rad/s² Moment of inertia, typically 2.5E-6 kg m² Start-up torque, 20 °C 2 Ncm Circular runout ± 0.3 mm (static, radial) Mass, typically 0.3…0.5 kg
Nominal voltage - Specific value 24 VDC - Limit values, min/max 11/27 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Supply - In case of UL / CSA approval according to NEC Class 2 Device design - Type Single-/Multi-Turn Total resolution <= 36 Bit Number of steps per revolution <= 262144 Number of revolutions <= 256000 SSI - Interface - SSI-Clock input Optocoupler - SSI-Data output RS-422, 2-wire - SSI-Clock frequency 80…1000 kHz - SSI-Mono time, typically 15 µs, 20 µs, 50 µs, 500 µs Incremental - Interface - Equipment Optional interface - Incremental signals, square K1± K2± - Impulses, square wave 1024 or 2048 - Output driver, TTL RS-422, 5 VDC Cycle time 250 µs, internal Parameter/Function, changeable Resolution Output code Output format Mono time Preset parameter Parity Toggle bit Counting direction Type of parametrization programmable Programming - Tool TR-Soft: TRWinProg External inputs - F/R Count direction - Preset electronic adjustment - Logic level "0“ < +2V, "1“ = Supply Maximum Speed, mechanically <= 12000 1/min Shaft load, axial/radial Own mass Bearing life time >= 3.9E+10 revolutions Bearing life time - Parameter - Speed 6000 1/min - Operating temperature 60 °C Shaft type - Shaft diameter [mm] 8 - Shaft diameter [mm] 10 - Shaft diameter [mm] 11 - Shaft diameter [mm] 12 Angular acceleration <= 10E+4 rad/s² Moment of inertia, typically 2.5E-6 kg m² Start-up torque, 20 °C 2 Ncm Circular runout ± 0.3 mm (static, radial) Mass, typically 0.3…0.5 kg
